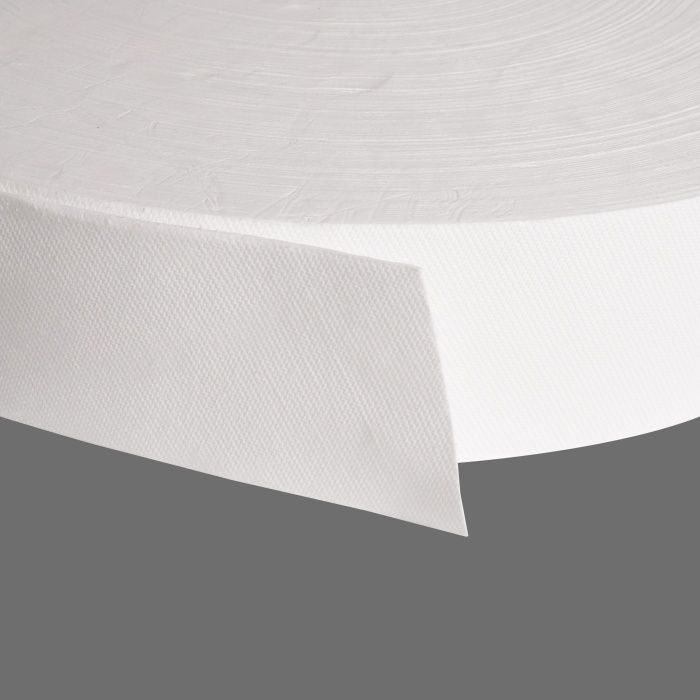

The Absorbent Glass Mat (AGM) separator is the cornerstone of the modern Valve-Regulated Lead-Acid (VRLA) battery. Far more than a simple physical barrier, this highly engineered component is a critical performance-defining element. It is responsible for electrolyte suspension, internal oxygen recombination, mechanical support, and electrical conductivity. Choosing the right AGM separator is not a mere procurement decision; it is a fundamental engineering choice that directly impacts battery life, power output, safety, and overall reliability.
For engineers, procurement specialists, and battery designers, navigating the technical datasheets and claims of various AGM separator suppliers can be a complex task. A superficial focus on price per square meter can lead to catastrophic failures and costly recalls down the line. A deep, specification-driven evaluation is paramount. This article provides a detailed framework for sourcing AGM separators by breaking down the key specifications into four critical categories: Physical & Mechanical, Electrical & Electrochemical, Pore Structure, and Chemical & Durability properties.
1. Physical and Mechanical Properties: The Structural Backbone
These specifications define the separator’s physical form and its ability to withstand the rigors of battery assembly and operation.
a) Thickness and Caliper (μm or mm):
Thickness is one of the most directly influential specifications. It must be tightly controlled and consistent across the entire roll.
- Why it Matters: Thickness directly influences the battery’s internal resistance (thinner separators can lower resistance, improving power output) and the overall plate spacing. Insufficient thickness increases the risk of dendrite growth and short circuits. Excessive thickness wastes space, reducing the battery’s energy density and increasing its size and weight. The chosen thickness must provide a perfect balance between mechanical resilience (to prevent punctures) and minimalistic design.
- Evaluation Tip: Demand to see statistical process control (SPC) data showing thickness variation across a roll and between production batches. Consistency is non-negotiable.
b) Basis Weight (g/m²):
This is the mass per unit area of the separator. It is a fundamental measure of the material’s density.
- Why it Matters: Basis weight correlates strongly with other key properties like tensile strength, porosity, and acid saturation. A higher basis weight typically indicates a denser, stronger mat but may come at the expense of porosity. It must be optimized in conjunction with thickness to achieve the desired mechanical and electrochemical performance.
- Evaluation Tip: Do not evaluate basis weight in isolation. Always consider it alongside thickness (giving you density) and porosity.
c) Tensile Strength (MD & CD – kN/m or N/cm):
This measures the force required to break a sample of the separator. It is tested in both the Machine Direction (MD – the direction of production) and the Cross Direction (CD).
- Why it Matters: The separator must have high tensile strength, particularly in the MD, to survive the high-speed automated winding processes used in cylindrical battery assembly without stretching or breaking. Low tensile strength leads to production line breaks, downtime, and defective cells. It also indicates the separator’s ability to maintain structural integrity when subjected to plate growth and other mechanical stresses over the battery’s life.
- Evaluation Tip: Ensure the CD strength is also sufficient. A significant imbalance between MD and CD can indicate manufacturing issues and lead to problems during handling.
d) Puncture Resistance (N or gf):
This is a critical test that measures the force required for a probe to puncture the separator.
- Why it Matters: This property is the primary defense against sharp edges on the plates, debris, or lead dendrites that can form during cycling. A high puncture resistance rating is absolutely essential for preventing micro-shorts and catastrophic cell failure. This is arguably one of the most important specifications for long-term battery reliability.
- Evaluation Tip: This is a key differentiator between premium and inferior separators. Never compromise on puncture strength.
e) Stiffness / Bendability:
This describes the separator’s resistance to bending. It can be measured as a bending length (mm) or as a stiffness in mg.
- Why it Matters: The separator must be flexible enough to be wound tightly around the plates in cylindrical cells without cracking or fracturing the glass fibers. However, it must also be stiff enough to be handled by automated equipment without folding or wrinkling, which can create points of failure. The optimal stiffness is a careful balance dictated by your specific assembly process.
2. Electrical and Electrochemical Properties: The Performance Engine
These specs determine how the separator influences the core electrical functions of the battery.
a) Electrical Resistance (mΩ·cm² or mΩ·in²):
This is a measure of the opposition to ionic current flow presented by the separator when saturated with electrolyte.
- Why it Matters: Lower electrical resistance is directly correlated with higher battery performance. It translates to lower internal resistance, higher Cranking Amps (CA), higher Cold Cranking Amps (CCA) for automotive batteries, and improved discharge voltage for deep-cycle applications. It is a primary indicator of how efficiently the battery can deliver and accept power.
- Evaluation Tip: Always compare resistance values under identical testing conditions (e.g., acid density, saturation level, temperature). This is a must-test specification in your own quality control lab.
b) Acid Absorption and Retention (g/g or % sat.):
This measures the separator’s capacity to absorb sulfuric acid and, just as importantly, to retain it over time and throughout the charge-discharge cycles.
- Why it Matters: Rapid absorption is crucial for efficient battery manufacturing. Superior retention is vital for battery life. If the separator loses acid or allows it to stratify, the active material utilization drops, and the battery capacity fades prematurely. Effective retention also ensures the oxygen recombination cycle can function efficiently.
- Evaluation Tip: Evaluate both “free” absorption (how fast it wicks) and “forced” absorption under pressure (simulating plate compression). Also, consider testing for acid squeeze-out under compression.
3. Pore Structure: The Heart of the Function
The microscopic pore network is what enables the AGM separator‘s magic. It’s not just about quantity but also about size and distribution.
a) Porosity (% volume):
This is the percentage of the separator’s volume that consists of void space (pores).
- Why it Matters: Porosity determines the total reservoir available for electrolyte storage. Higher porosity generally allows for more acid, which can support greater capacity and longer life. However, porosity must be balanced with mechanical strength—very high porosity can sometimes lead to weaker puncture resistance.
- Evaluation Tip: A typical range for AGM separators is 90-95%. Be wary of values outside this range without clear justification.
b) Mean Pore Size (μm):
This is the average diameter of the pores within the separator.
- Why it Matters: Pore size is a critical factor in preventing short circuits. The pores must be small enough to physically block the passage of lead sulfate crystals and dendrites. Furthermore, smaller pores create higher capillary forces, which enhance acid retention and wicking, especially against gravity. This is essential for maintaining performance in any orientation.
- Evaluation Tip: Mean pore size is important, but the distribution is critical. A narrow pore size distribution is ideal, ensuring consistent performance without large, problematic pores that could allow dendrite penetration.
c) Pore Size Distribution:
This describes the range of pore sizes present and their frequency.
- Why it Matters: A separator with a wide distribution containing a small number of very large pores is far more susceptible to failure than one with a tight, normal distribution where all pores are consistently small. Large pores are weak points that offer little resistance to dendrites and can act as channels for oxygen gas that bypass the recombination process.
- Evaluation Tip: Request a pore size distribution graph from the supplier. A sharp, narrow peak is the hallmark of a well-manufactured product.
4. Chemical and Durability Properties: The Longevity Guarantee
These specifications ensure the separator can survive the harsh electrochemical environment inside a battery for years.
a) Chemical Stability / Oxidation Resistance:
The separator must resist degradation from the highly oxidizing environment at the positive plate.
- Why it Matters: Over time, the positive plate can generate oxidative species that attack organic materials. While AGM is primarily glass, the binder used to hold the fibers together is often organic. Poor oxidation resistance leads to binder breakdown, causing the mat to lose its structural integrity, compress, and ultimately fail.
- Evaluation Tip: Suppliers test this by exposing samples to strong oxidants like hydrogen peroxide or boiling nitric acid and then measuring the loss in mechanical strength. Ask for the results of these ASTM or IEC standard tests.
b) Impurity Level (ppm):
This quantifies the amount of undesirable ionic contaminants like iron (Fe), chloride (Cl⁻), and sulfate (SO₄²⁻).
- Why it Matters: Even trace amounts of impurities can have a devastating impact on battery life. Iron, for example, can create a “shuttle” reaction that promotes self-discharge and water loss. Chlorides can corrode terminals and plates.
- Evaluation Tip: Require a Certificate of Analysis (CoA) with each batch, detailing impurity levels. Establish strict maximum acceptable limits for key contaminants in your sourcing agreement.
c) Thermal Stability:
The ability of the separator to maintain its properties when exposed to high temperatures, both during processing and in application.
- Why it Matters: Batteries can operate in hot environments (e.g., under the hood of a car). The separator must not shrink, melt, or degrade, as this would compromise its insulating function and lead to failure.
- Evaluation Tip: Inquire about the thermal properties of the glass fibers and the binder system used.
Conclusion: A Holistic and Rigorous Approach
Sourcing an AGM separator cannot be reduced to a single metric. The art of selection lies in understanding the intricate trade-offs and synergies between these specifications. A separator optimized for ultra-low resistance might be thinner and require a sacrifice in puncture strength. A high-porosity mat might need a stronger binder system to maintain durability.
